No need to carry around ISO table or bolt size chart with you. How does it work.

Bolt Torque Chart 5 Free Templates In Pdf Word Excel Download

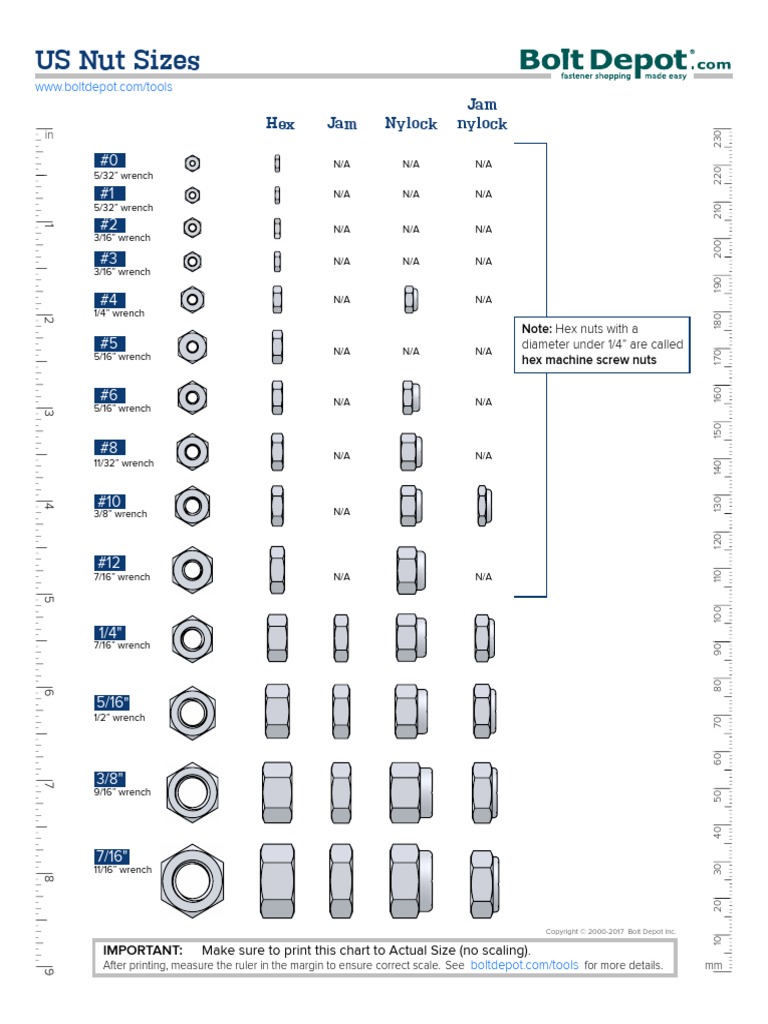

Make sure to print this chart to Actual Size no scaling.

Bolt size chart excel. Bolt Depot - Nuts and Bolts Screws and Fasteners online. Flange Bolting Chart - ASME B165. F H J P Q I L W X S T U 2564 2964 1532 1332 Y Z 2764 3364 1732 3164 3764 1932 4164 2132 4564 2332 4964.

Start today and improve your skills. Lubed means cleaned dry bolts lubricated with standard medium viscosity machine oil. Join millions of learners from around the world already learning on Udemy.

Each kit contains fasteners nuts washers and lock washers of the same material as your flange. High strength structural bolts only as per is 3757. Bolt Grade Actual outer diameter 1 2 5 8 alloy alloy Imperial Tap Drill Chart Machine Screw Size Tap Drills Clearance Hole Drills Aluminum Brass Plastics 75 Thread Stainless Steel Steels Iron 50 Thread All Materials Close Fit Free Fit Drill Size Decimal Equiv.

Start today and improve your skills. Extreme Bolt Fastener can match the material of your flanges with easy bolting kits. For example in M8-1020 the M means the Metric thread designation the digit 8 refers to the Nominal diameter in millimeters 10 refers to the pitch and 20 refers to the.

The size of a metric bolt is specified using pitch diameter and length in millimeters. Approximate weight in kgs for 100nos. Metric External Table Chart Thread Sizes M 80 - M 100.

Standard External Metric Thread and Fastener Sizes M 025 - M 14. Of washer face Dw Thickness of head K Radius under head R. For angular lifts adjust working load as follows.

Lubricating the bolts is the suggested method. Also take notice of the other tabs on the bottom of the document including the tap drill chart and clearance hole size chart. Copyright 2000-2017 Bolt Depot Inc.

In Normal Fit in Close Fit in Loose Fit in 0. Hole Sizes 1-24 Thumb and Wing Screws 1-25 to 1-27 B7 Studs and Nuts Stud Bolts for Pressure-Temperature Piping 2-1 General Purpose End-to-End Studs 2-2 Tap End Stud Bolts 2-3 Double End Stud Bolts 2-4 Bolts Hex Cap Screws Finished Hex Bolts 3-1 Wrench Openings for Square and Hex Bolts and Screws 3-2 to 3-3. Hex Bolt Identification.

Lubricating the bolts is the suggested method. Irrespective of the thread standard you prefer including the British Standard Whitworth BSW the information present in this chart can be extrapolated to be used as a bolt weight calculator. After printing measure the ruler in the margin to ensure correct scale.

Size metric size decimal inch millimeter mm m62362 60000 142500 63500 5163125 79375 m83149 80000 383750 95250 m103937 100000 7164375 111125 m124724 120000 125000 127000 9165625 142875 586250 158750 m166299 160000 347500 190500 m207874 200000 788750 222250 m249448 240000 1 10000 254000 1 18 11250 285750. Fastener Thread Designations and Definitions Pitch Minor Major Diameters. Nominal Pipe Size Bolts or Studs Dia of Bolts or Studs Length of Stud Bolts or Studs Dia of Bolts or Studs Length of Stud Bolts or Studs Dia of Bolts or Studs Length of Stud.

Ad Learn Excel Charts online at your own pace. Feel free to reach out to us for all of your b7 bolts b8 studs and any other type of fasteners used when consulting an ASME B165 Stud Bolt Flange Chart. Imperial Grades IBFIN2 PSI Metric Classes MPA NMM2 L9 -- 180000 PSI -- HIGH TENSILE.

Lubricate all contact areas of the bolts and washers. SAE GRADE 8 -- 150000 PSI -- HIGH TENSILE. Click here to view or download a printable 150 300 600 Flange Stud Bolt Chart Flange Bolting Chart also known as a flange bolting chart.

The following grades of bolt can be obtained. The following chart shows the quantity. Grade 36 grade 46 grade 48 grade 56 grade 58 grade 68 grade 88 - typical grade 98 grade 109 -.

BOLT SIZES FOR ANSI 150 TO 1500 CLASS FLANGES Dimensions inches ANSIASME 150 - 600 lb Flange. ASME B165 Stud Bolt - Flange Chart. Metric External Table Chart Thread Sizes M 56 - M 78.

The chart includes details for nuts hex bolts self-tapping screws and helicoils and makes it easy for you to calculate the number of pieces you can expect with each purchase. Metric bolts are referenced using M sizes such as the M8 bolt size. The Fastener Dimension Guide was created by Nord-Lock Group in cooperation with the Swedish Standards Institute SSI.

Pipe Size Wrench Size Flange Bolts Raised Face Diameter Bolt Circle Flange Diameter Quantity Size 12 78 4 12 138 263 3-34 34 1-116 4 58 169 325 4-58 1 1-116 4 58 200 350 4-78 1-14 1-116 4 58 250 388 5-14 1-12 1-14 4 34 288 450 6-18 2 1-116 8 58 363 500 6-12 2-12 1-14 8 34 413 588 7-12 3 1-14 8 34 500 663 8-14. Select the proper size eye bolt for the job. Chart showing stud sizes ring gasket size API SPECS FOR RING-JOINT FLANGES NEW API NOMINAL SIZE FLANGE API RING NO STUDS WITH NUTS A.

Select the bolt size. Select the standard. 1 BOLT GRADE - Enter the two numbers comprise the bolt grade here and the approximate bolt ultimate strength and yield are calculated.

Length 14 - 20 10 - 24 8 - 32 6 - 32. Metric External Table Chart Thread Sizes M 20 - M 55. It will quickly and accurately calculate the maximum bolt tensile load shear load torsion load and the recommended tightening torque among other things for any size fastener US customary units only.

Ad Learn Excel Charts online at your own pace. Bolt Size Bolt Dia. Press See result.

Join millions of learners from around the world already learning on Udemy. CLASS 129 -- 1200 MPA -- HIGH TENSILE. Nominal size and thread diameter d Number of threads per Inch Thread Length B Diameter of unthreaded shank Ds Width across flats S Width across corners E Dia.

Nom Dia-Pitch Nom Size x Pitch INCH BOLT TORQUE TABLE SAE J429 and ASME 574 METRIC BOLT TORQUE TABLE ISO 898. Contact our experts if you have questions about the best options for your application. Direction of Pull Adjusted Working Load 45 degrees 30 of rated working load 90 degrees 25 of rated working load 2Drill and tap the load to the correct sizes to a minimum depth of one-half the eye bolt size beyond the shank length of the machinery eye bolt.

Bolt Head Size Chart Use This Chart To Determine The Head Size And Therefore The Wrench Or Socket Size Required For Any Hex Hex Bolt Metric Bolt Sizes Bolt
